YZ(J)系列液压站 YZ(J)SERIES HYDRAULIC POWER UNIT

应用Application

·YZ(J)型液压站主要用于液压夹轨器、液压轮边制动器、安全制动器的配套驱动，也可作为其他单作用油缸的配套驱动。

APPLICATION

·YZ(J) series hydraulic stations are mainly used for matching diriving of hydraulic rail clamp, hydraulic wheel brake and safety brake, and also can be used as matching driving of other single-acting cylinders.

主要特点Main Feature

·结构紧凑，造型美观，保压性能稳定；

·多功能复合控制方式，在断电检修时，依靠人力实现上压过程；

·设有防尘罩，可适应露天作业；

·主要阀件为座阀，泄漏量少，系统保压性能稳定，电机不需长时间运转。

·配有手动泵，可在断电、检修时作应急动力源。

MAIN FEATURE

·Compact structure, beautiful appearance and stable pressure retaining performance;

·Multi functional composite control mode, in the power failure maintenance,relying on human to achievethe pressure process;

·Equipped with dust cover, it can adapt to outdoor operation;

·The main valve is seat valve,which has less leakage，stable pressure maintaining performance of the system,and the motor does not need to run for a long time.

·Be equipped with hand pump, which can be used as the emergency power supply when powered off and maintained.

使用条件 Operating Condition

·环境温度:-10℃~+40℃

·相对湿度:空气相对湿度不大于90%

·电机工作电源:三相交流，AC380V、50Hz

·泵站控制电源:AC220V、50Hz(如需其它电压，请订货时事先说明)。

OPERATING CONDITION

·Ambient temperature: -10℃~+40℃

·Relative humidity: The relative humidity of the air is not more than 90%

·Motor power supply: AC3 phase,AC380V, 50Hz

·Control power supply of pump station: AC220V, 50Hz

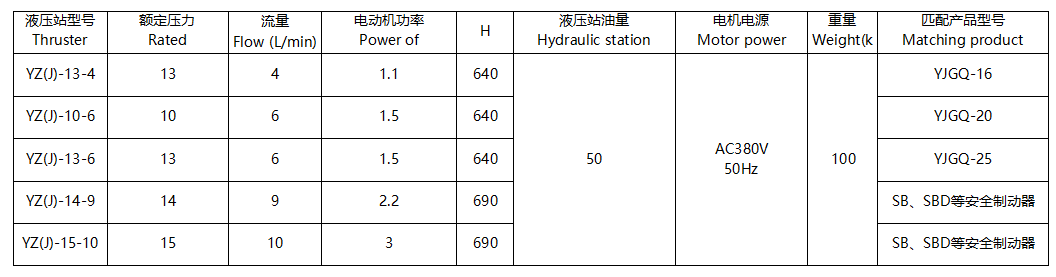

YZ(J)系列液压站技术参数及外形尺寸 TECHNICAL DATA AND DIMENSIONS OF YZ(J) SERIES HYDRAULIC POWER UNIT

·注：具体型号，结构及外形尺寸保留更改的权利。Note: The size of the specific type and structure should be retained.

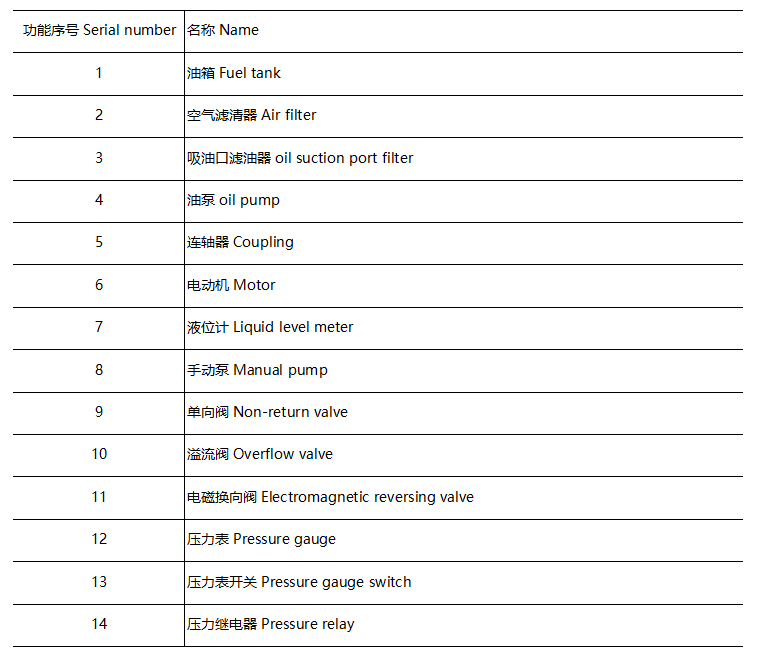

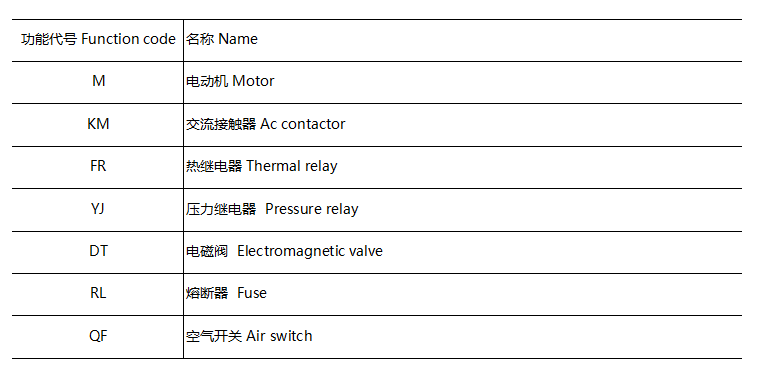

液压站附加功能表 ADDITIONAL FUNCTION TABLE
