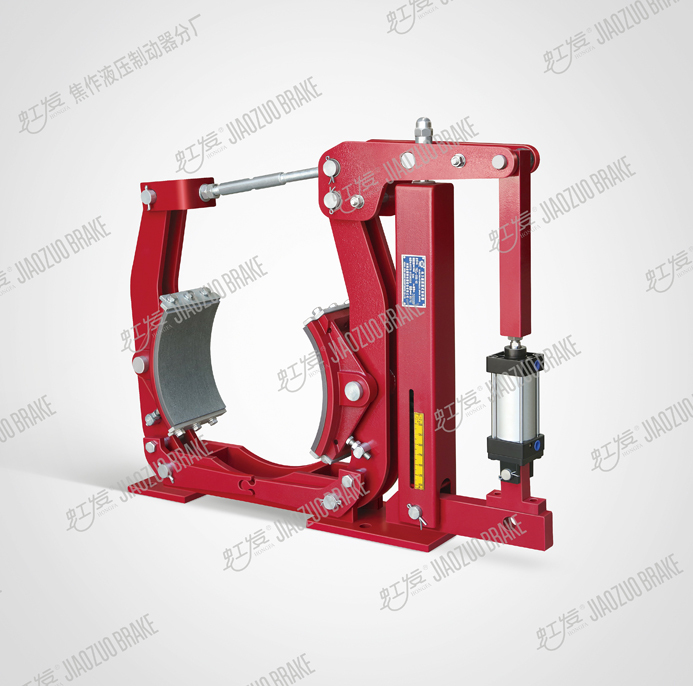

QWZ5系列气动鼓式制动器 QWZ5 SERIES PNEUMATIC DRUM BRAKES

应用 Application

·QWZ5系列气动鼓式制动器，广泛应用于现场配有气源的各种起重、皮带运输、矿山机械、冶金机械及港口装卸等各种机构的减速和停车制动。

APPLICATION

·QWZ5 series pneumatic drum brake is widely used for deceleration and parking brake ofvarious hoisting，belt transportation，mining machinery, metallurgical machinery andport handling equipped with air source.

符合标准Standards Compliant

·QWZs系列气动制动器的安装尺寸符合DIN15435和JB/T7021-2006标准。技术要求符合JB/T6406-2006标准。

STANDARDS COMPLIANT

·The installation dimension of QWZs brake conforms to DIN15435 and JB/T7021-2006standards.The technical requirements conform to JB/T6406-2006 standard.

使用条件 Operating Condition

·环境温度:-20℃~+50℃

·制动器周围工作环境中不得有易燃、易爆及腐蚀性气体，否则应采用防腐型产品。

·相对湿度:空气相对湿度不大于90%

·工作气压:0.5~0.7MPa

·有特殊要求时，在订货时协商确定。

OPERATING CONDITION

·Ambient temperature: -20℃~+50℃

·Flammable, explosive and corrosivegases are not allowed in the surrounding working environment,otherwise anti-corrosion products should be used.

·Relative humidity: the relative humidity of the air is not more than 90%

·Operating air pressure: 0.5~0.7MPa

·Special requirements can be discussed before production.
